Detailed introduction

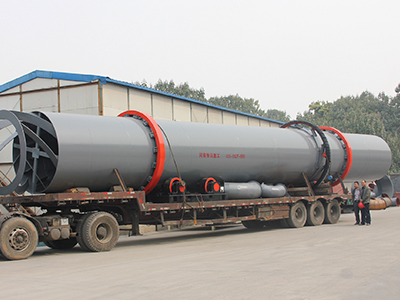

Sludge dryer is specially designed for materials with high moisture content, high viscosity, high water conservation and low heat value like sludge. It makes innovation in its inner structure, which could not only improve the thermal efficiency, but also effectively avoid the phenomenon like adhesion and over drying of sludge.
Overview
Sludge dryer can be widely applied in drying all kinds of slurry and slag with high moisture content like activated sludge drying, sewage sludge drying, petrochemical sludge drying, papermaking sludge drying, printing and dyeing sludge drying, tanning sludge drying, electroplating sludge drying, municipal sewage sludge drying, biological fermentation bacteria slag drying, etc.
Besides, Sludge drying machine is also suitable for drying urban sludge. The sludge after drying can be used in agriculture or as fuel, which is beneficial for environment.
Sludge Dryers Features
1. The reasonable partition improves the effect of material scattering and lifting.
2. The adoption of downstream drying process between materials and hot air expands its application range and keeps the original activity of materials very well.
3. The optimized structure prolongs its service life.
4. It is highly efficient and energy-saving. Sludge drying machine adopts a new type transmission device which can save coal by about 20%, compared with the average sludge dryers.
5. It is green and environmentally friendly. Rotary sludge dryer adopts multi-stage purifying and dust removal device which reaches or exceeds the national environmental protection standard. Thus it can reduce environmental pollution.
Technical specifications:
| Spec | capacity(t/d) | evaporativewater(t/h) | Inputmoisture(%) | Outputmoisture(%) | Driyngtemperature(℃) | Totalpower(kw) | Totalweight(kw) | Total area(㎡) |
|---|
| YHJG1208 | 43.7 | 0.75 | 65±5 | 30 | 350-450 | 32 | 15000 | 5*14 |
| YHJG1408 | 52.5 | 0.9 | 65±5 | 30 | 350-450 | 40 | 15000 | 5*14 |
| YHJG1610 | 75.8 | 1.3 | 65±5 | 30 | 350-450 | 55 | 17000 | 6*16 |
| YHJG2010/3 | 269 | 2.9 | 65±5 | 30 | 350-450 | 65 | 21500 | 8*16 |
| YHJG2210/3 | 186.5 | 3.2 | 65±5 | 30 | 350-450 | 100 | 26500 | 8*16 |
| YHJG2510/3 | 215.5 | 3.7 | 65±5 | 30 | 350-450 | 125 | 28500 | 10*16 |
| YHJG2512/3 | 262.2 | 4.5 | 65±5 | 30 | 350-450 | 145 | 37000 | 10*18 |
| YHJG2912/3 | 317.6 | 5.45 | 65±5 | 30 | 350-450 | 165 | 41000 | 8*18 |
