Processed Materials: Soybean straw, cotton stalks, corn stalk,wheat straw, sorghum stalk,wood chips, wood shaving, sawdust,mulberry leaves
Applications: Straw briquette fuel, charcoal, sawdust pellet fuel, sawdust briquetting, farming and animal husbandry engineering, etc
Capacity: 0.5-40tones per hour
Heating Fuel: Coal, Gas, Oil, Biomass fuels, Wood,etc
Introduction

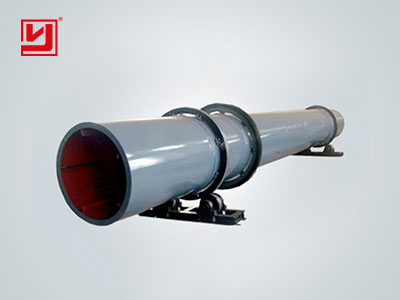

Wooden sawdust dryer is your best choice to dry biomass materials of high moisture content and produce high quality biomass fuel. Biomoass materials go through dryer can improve biomass fuel efficiency of 5-15% and lower down emission. It can be used for drying a wide range of biomass materials such as alfalfa, straw, sawdust, marigold, wood shavings, manioc waste, bagasse, colza cake and leaves, etc. Featured by low energy consumption and high drying efficiency, it is widely employed in chemical industry, metallurgy, building and mine digging, etc. The heat efficiency reaches 80% which is much more higher than other drying equipment.
Working Principle
Biomass materials with high moisture content are fed into rotary cylinder; shovelling plates inside the drum walls raise up materials and these materials scatter down to move in a spiral forward style. During the constant raising up and scattering down, biomass materials can absorb enough amout of heat, at the same time, the drying time is extended to achieve the best drying effects.
Advantages
1. High temperature and heat air can dry biomass materials quickly and evenly.
2. High self-insulation thermal efficiency of 70% inside the drum.
3. Economic space occupation, easy to build and maintain.
4. Moisture content requirements is adjustable, depending on client’s demand.
5. Stable drying process, low energy consumption, low cost.
Model | Power | Capacity |
---|---|---|
(kw) | (t/h) | |
Ф600×6000 | 3 | 0.5-1.5 |
Ф800×8000 | 4 | 0.8-2.0 |
Ф800×10000 | 4 | 0.8-2.5 |
Ф1000×10000 | 5.5 | 1.0-3.5 |
Ф1200×10000 | 7.5 | 1.8-5 |
Ф1200×12000 | 11 | 2-6 |
Ф1500×12000 | 15 | 3.5-9 |
Ф1800×12000 | 18 | 5-12 |
Ф2200×12000 | 18.5 | 6-15 |
Ф2200×18000 | 22 | 10-18 |
Ф2200×20000 | 30 | 12-20 |
Ф2400×20000 | 37 | 18-30 |
Ф3000×20000 | 55 | 25-35 |
Ф3000×25000 | 75 | 32-40 |
