Crawler Jaw Crusher

Detailed introduction

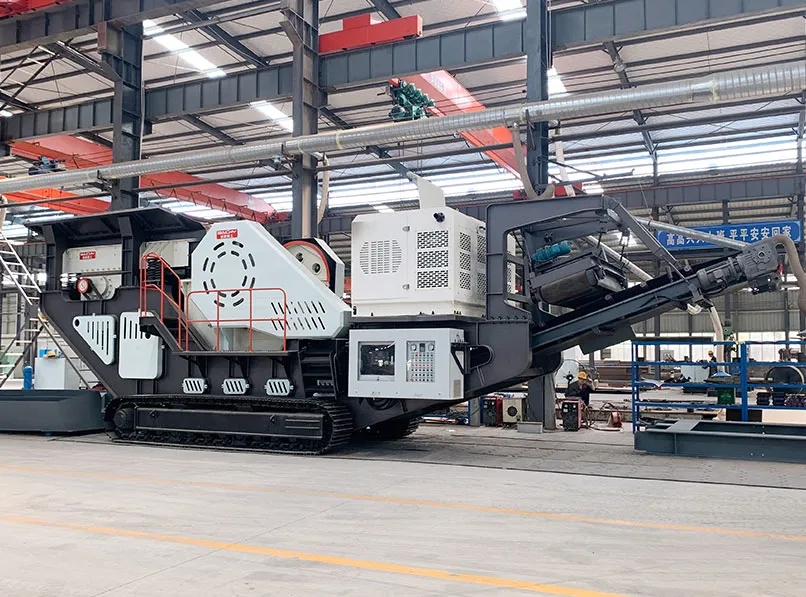

The crawler jaw crusher is a fully hydraulically driven, crawler-type mobile crushing equipment developed by Yuhong. The equipment is mainly composed of a feeder, a jaw crusher, and a belt conveyor, and the production operation is integrated.

Advantages

1. The whole machine is integrated. After arriving at the site, the operation can be carried out directly, without the installation of model infrastructure, which saves preparation time.

2. The power system uses a turbocharged diesel engine, which is energy-saving and environmentally friendly. The direct-drive full hydraulic system adopted has a compact layout, high efficiency, and excellent dustproof, shockproof and moisture-proof effects.

3. The crushing cavity of the selected crusher adopts “V” design, with large effective stroke and good crushing effect. Using high-quality steel castings, reliable and durable. High-quality special bearings, high carrying capacity and long service life.

4. The configured vibrating feeder can not only remove dirt and debris, but also control the feeding amount to match the processing capacity of the subsequent crushing production line while conveying materials continuously and uniformly, effectively improving production efficiency.

5. Adopting a centralized control system and displaying on the LCD screen, the operation is simple and convenient, and easy to use.




Working principle

Crawler jaw crushing equipment is often used for coarse crushing of materials and primary crushing of construction waste. First, the material enters the crushing cavity of the jaw crusher through the vibrating feeder, which has a pre-screening function. After being fully squeezed and crushed in the crushing chamber, it is conveyed to other equipment via a belt conveyor for the next step of crushing, or directly discharged via a belt conveyor to complete the crushing operation.
